Universal Pulse Generators

RUP8

The pulse generator RUP8 is a universal high-voltage pulse generator, which achieves maximum output voltages of +15 to +90 kV, depending on the design stage. In addition to its suitability for very high voltages, the outstanding feature of the RUP8 series is the economical and compact design. Positive square pulses are generated, preferably for operation at high impedance loads with low capacitances, e.g. for electrostatic coating processes. The pulse current is up to 1A, short circuit proof.

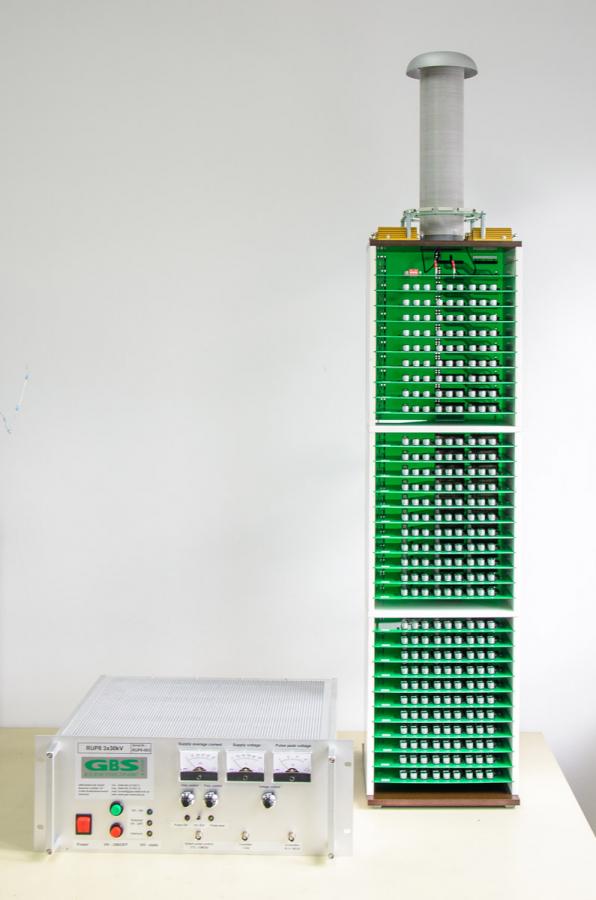

RUP8 control unit+cascade

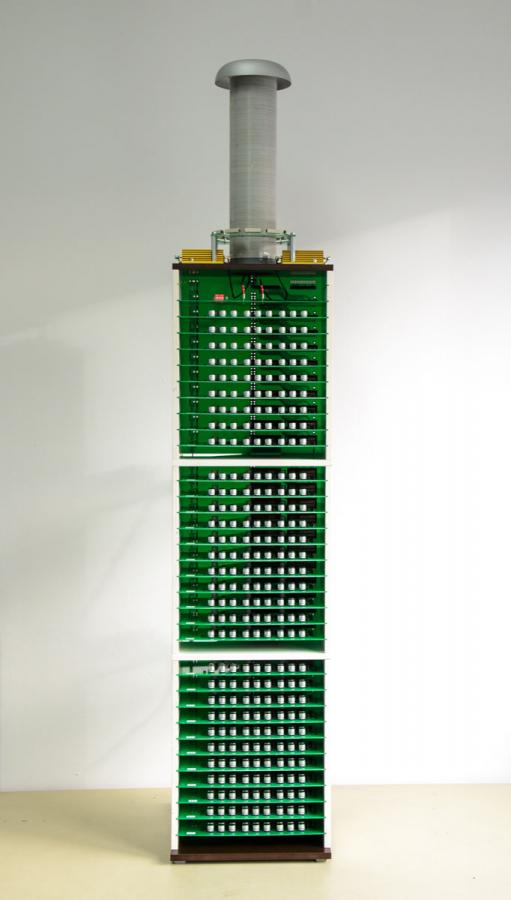

RUP8 cascade 3x30kV

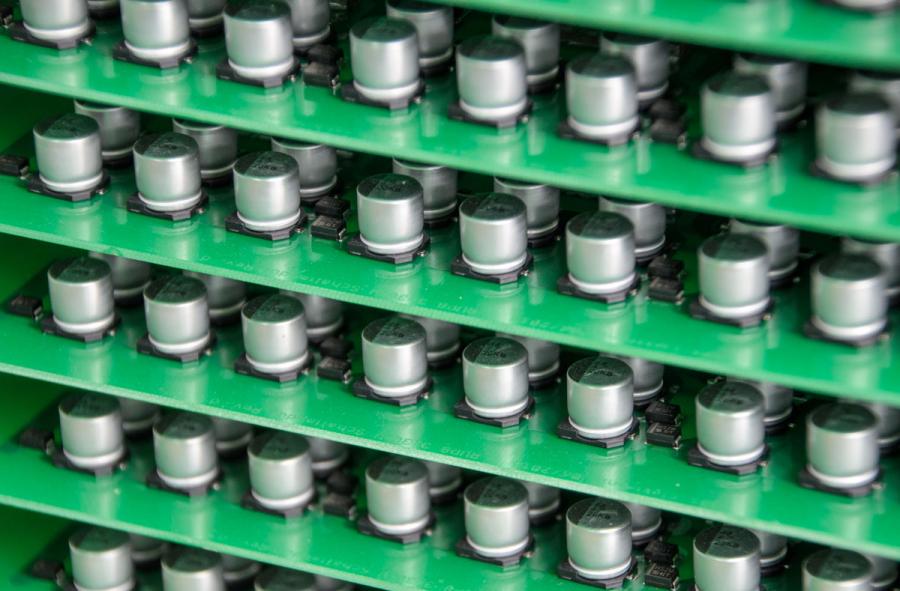

RUP8 cascade detail

The outstanding features of the RUP8 series are:

Real square pulse with active switch off
High efficiency
Individual scalability of the voltage
Fast arc shutdown.
Output inductor for minimizing switching losses
Very compact -and economical design

Applications:

Electrostatic coating of materials

General Specifications:

Models with high voltages from + 15kV to + 90kV
500W output power
Individual scalability of the voltage
Maximum load capacity 350pF
150mA average RMS current
Pulse length up to 1s almost completely freely adjustable
Pulse current up to 1A, short-circuit proof
Typical rise time up to 90kV, 31µs
Frequencies up to 100Hz at 160pF load capacity
