Universal Pulse Generators

RUP7

The RUP7 series includes current pulse generators that are designed for load impedances << 50Ohm and primarily for loads where the inductive component dominates. The outputs of the devices are basically potential-free and the current is switched off all-pole, so that the present energy in the load inductance is fed back into the pulse generator.

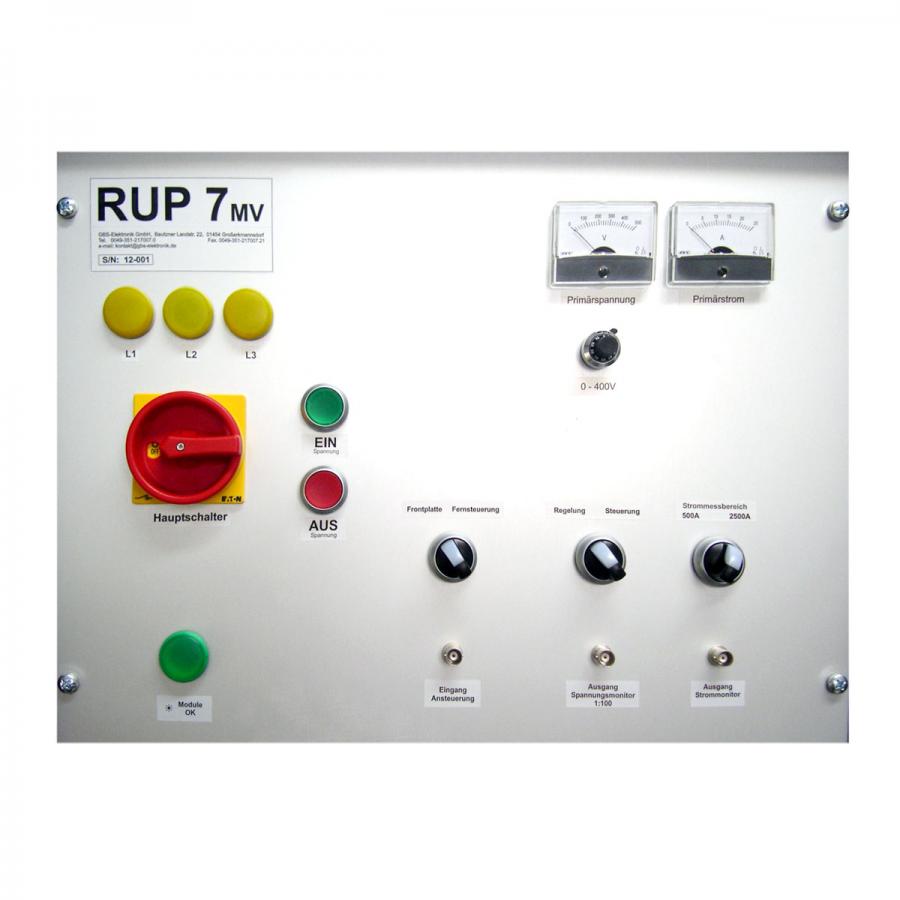

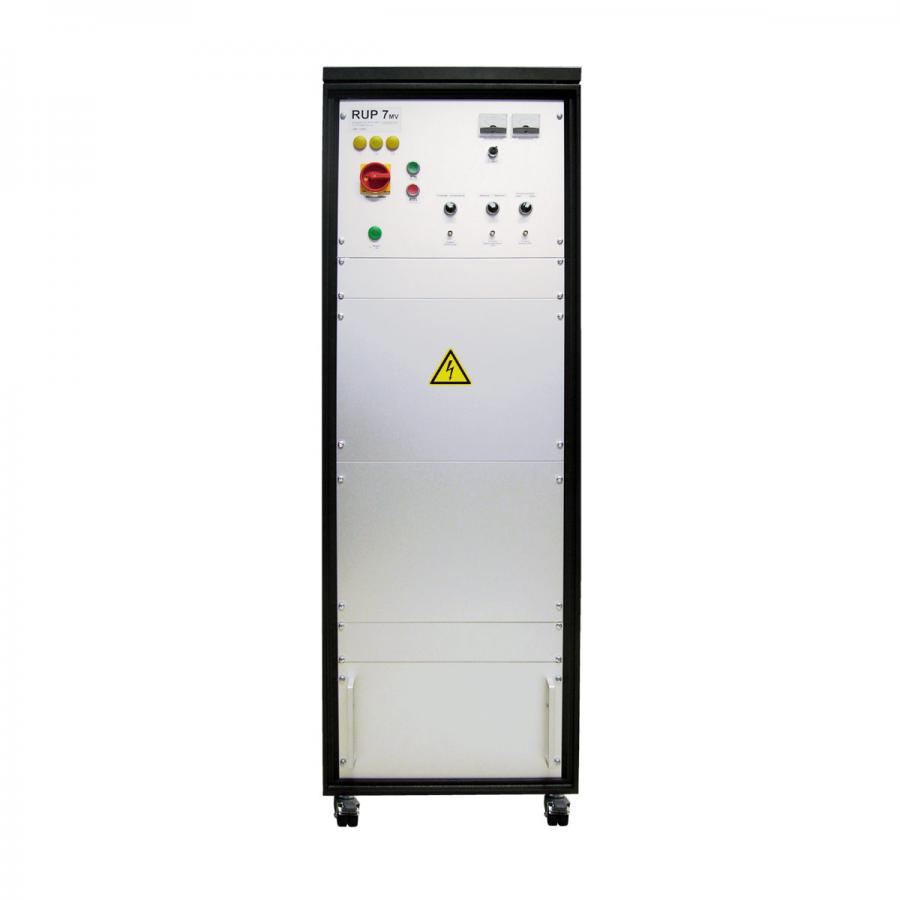

RUP7MV

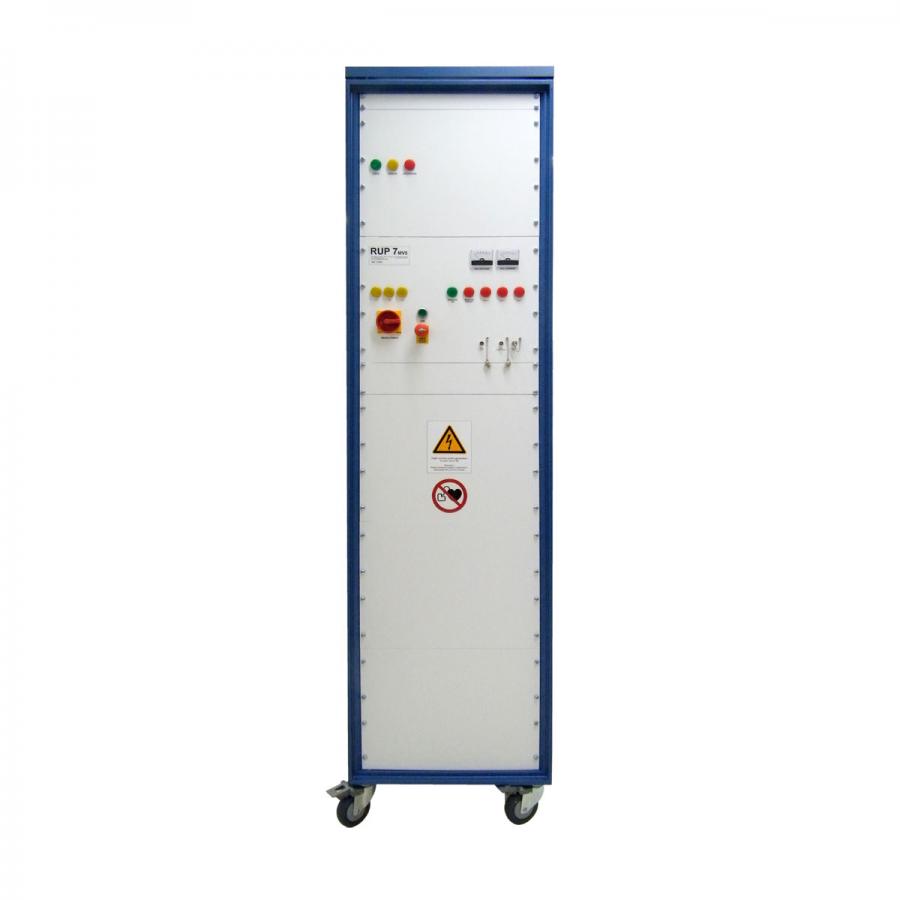

RUP7MV5

The outstanding features of the RUP7 series are:

Active, double - sided switch - off with energy return to storage capacity
high efficiency
Individual scalability of the current
Fast arc shutdown.
Output inductor for current rise limit

General Specifications:

High voltages up to 1000V, adjustable
Peak current 400A
Mean power of 2.5kW
30A average output current
Typical rise time with low-resistance load by 33µs
Typical rise time with high-resistance load approx. 0.1 - 0.5µs
Duty cycle from 0% to 100% possible

Special variants:

Mean power of 3.2kW or 15kW
Model with 2 operating modes: HV or HC pulse optimized U_max 1000V / 2000V | I_max200A / 400A
Model as test current source for loads in the mOhm range
Versions up to 2500A or 5000A peak pulse current

Applications:

Plasma coating
Magnetron sputtering
PVD sheet coating
Tests on semiconductor components

Downloads RUP7 Series

PDF General data sheet RUP7 English

PDF RUP7 with 2 operating modes (RUP7-2) German

PDF RUP7 peak current 5000A (RUP7MV5) German

Further variants can be found in our download section >>
