Universal Pulse Generators

RUP6 bipolar

The RUP6 bipolar consists, like the normal RUP6, of many cascaded 1kV pulse modules, which are connected in parallel and connected in series for the pulse. The bipolar case include not only a half-bridge, but a full-bridge and can therefore be connected in series in both polarities.
Here too, only one 1kV primary power supply is needed. The pulse width is freely selectable within very wide limits and is limited only by the stored energy.
The sequential control of the modules is also typical for the RUP6 bipolar; thus not only the pulse width and frequency, but also the rise time can be set in a wide range.
A typical application for the RUP6 bipolar are capacitive loads or high voltage isolation tests with corresponding frequency.

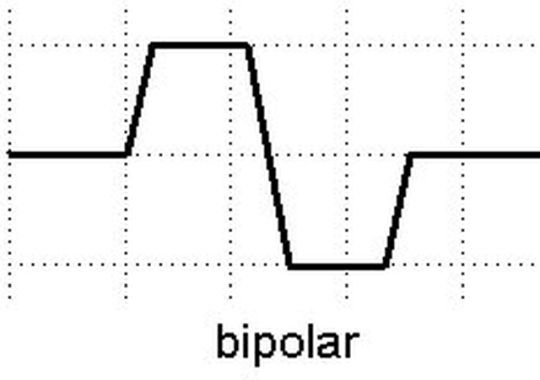

The RUP6 bipolar pulse generators can selectively output positive pulses, negative pulses, or a negative pulse immediately following a positive pulse.

The outstanding features of the RUP6 bipolar series are:

Trapezoidal pulse with active shutdown
Pulse length, frequency, amplitude and rise time almost freely adjustable
High efficiency
Individual scalability of the voltage
Fast arc shutdown.
Output inductor for minimizing switching losses

General Specifications:

Models with high voltages of +/- 8kV+/- 18kV and +/- 25kV have been constructed, other voltages possible on request.
50A pulse current maximum
3A effective current
Rise time in the range 0.6 ... 60?s
2kW output power
Frequencies up to 2.5kHz

Downloads RUP6 Series

PDF RUP6 Bipolar (RUP6-25bibv6)

PDF RUP6 Bipolar (RUP6-18bibv6)

PDF RUP6 Bipolar (RUP6-8bibv8)

Further variants can be found in our download section >>
