Multichannel Analyzer (MCA)

Cube527 spectrometer series

Device type: Complete spectrometers

The Cube527 spectrometer series offers high resolution gamma spectroscopy, based on CdZnTe detectors, at very small dimensions. The smart design allows to swap the CZT detector module and enables thereby the adjustment of sensitivity,  performance and customers budget requirements. The Cube series are categorized in their individual computer interfaces: Cube527 (µUSB Version) Cube527E (Ethernet Version) Cube527R (RS485Version).

Cube527 spectrometer series

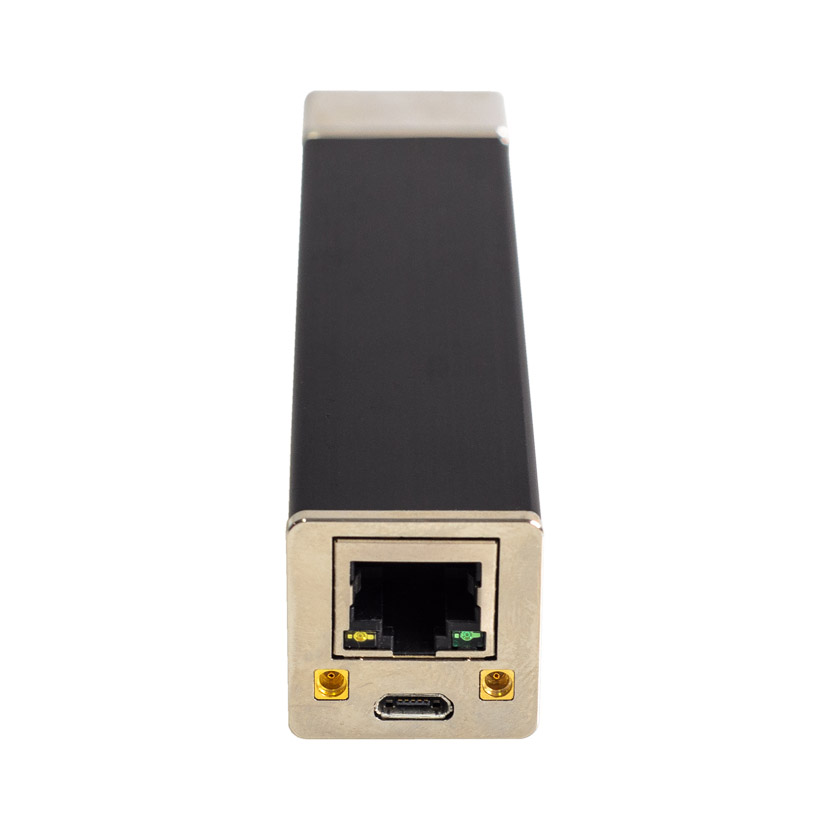

Cube527E spectrometer
Cube527 spectrometer series

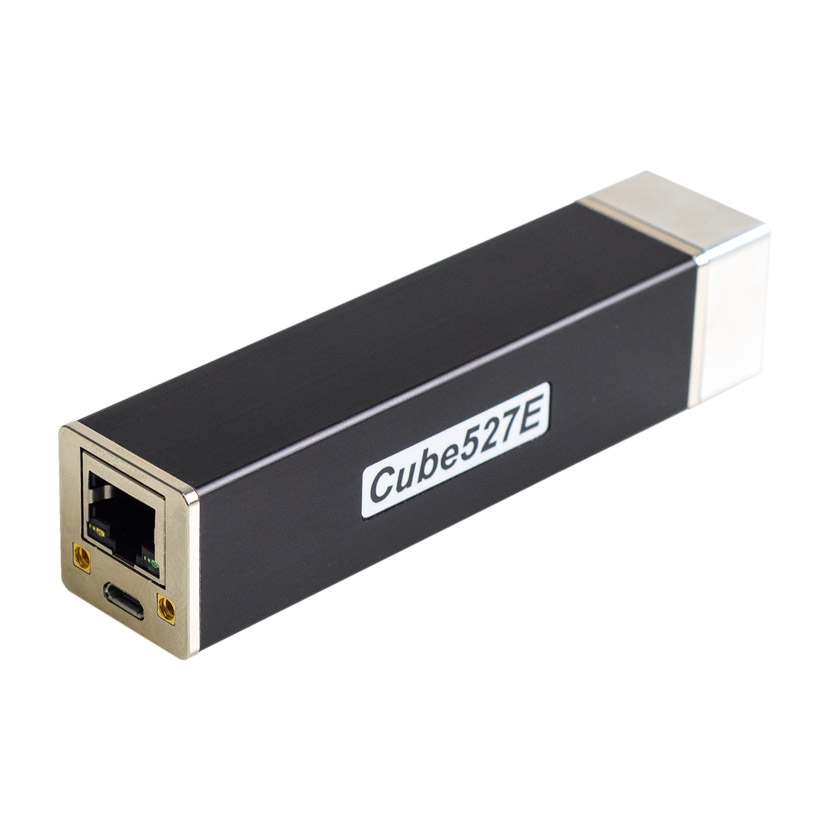

Cube527E spectrometer
Cube527 spectrometer series

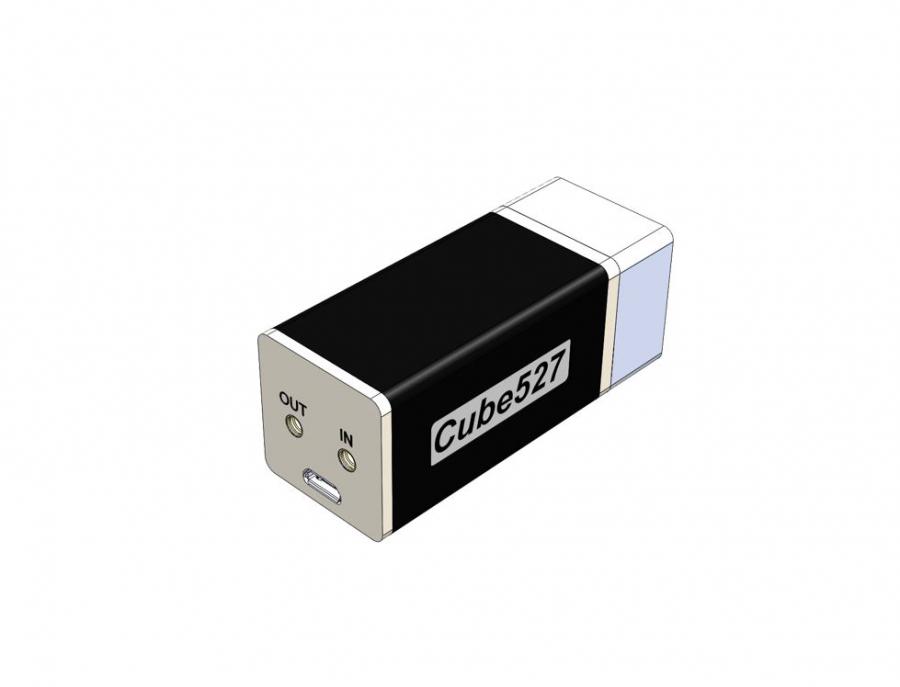

Cube527 spectrometer
Cube527 spectrometer series

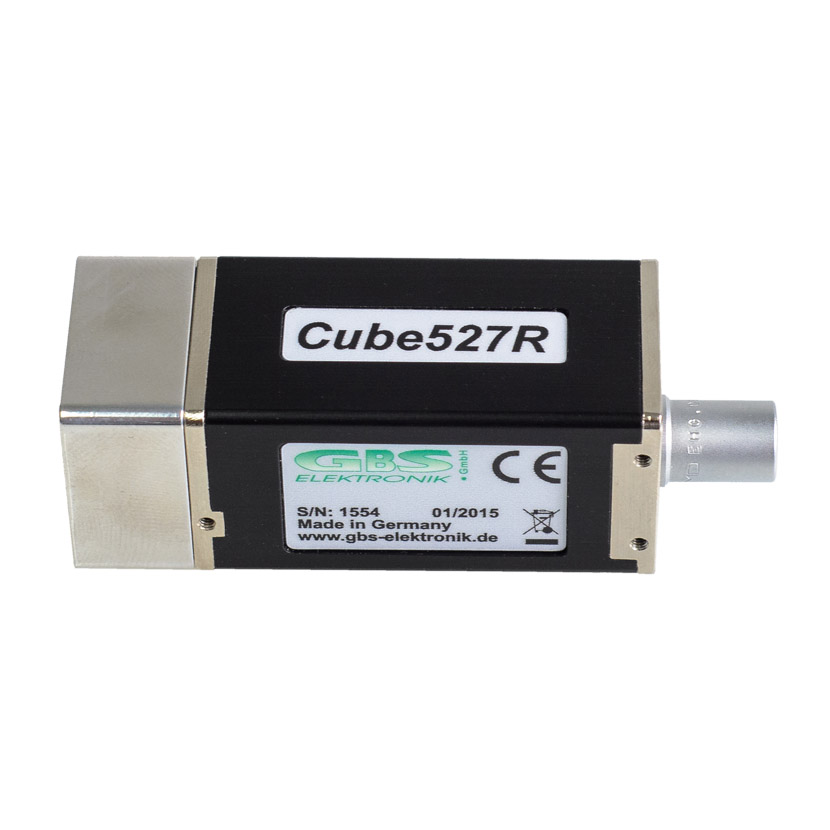

Cube527R spectrometer
Cube527 spectrometer series

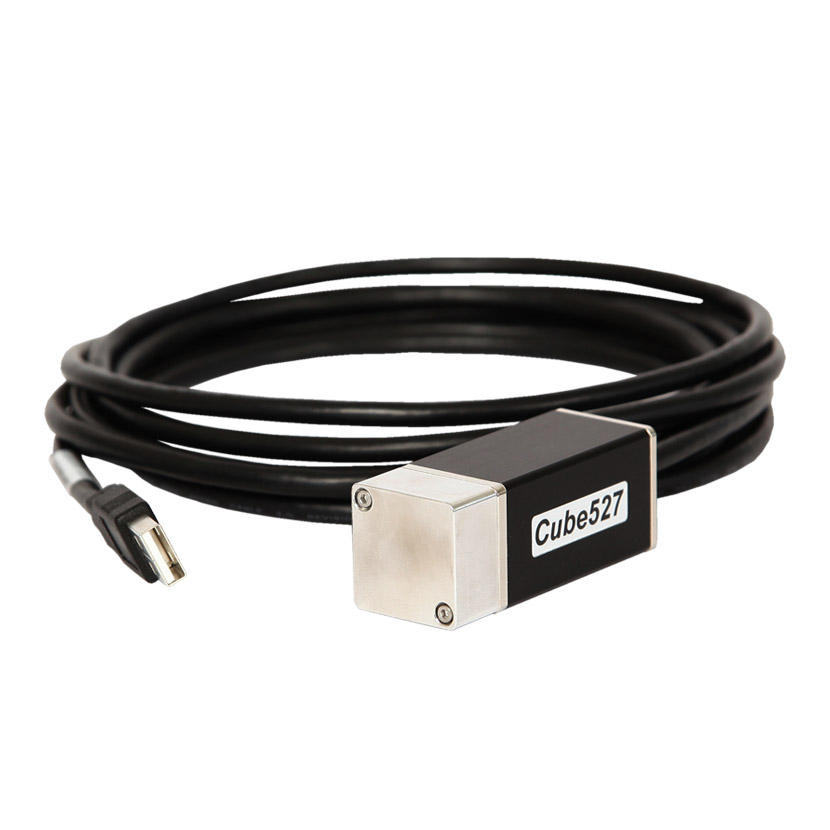

Cube527 spectrometer with fixed cable
Cube527 spectrometer series
Cube527 with preamplifier module and CZT500 Detector (BNC)

Physical characteristics

Dimensions 25mm x 25mm x 65mm   (µUSB-Version)

Weight of module 80g (µUSB-Version)

Operating temperature 0°C - 40°C

Relative humidity up to 90%, non condensing

Protection class IP42, EMC compliant

Key Features

  • All-in-one spectrometer inclusive CdZnTe detector
  • Detector module exchangeable in a minute
  • Up to 4k channel resolution
  • Ultra small dimensions and weight
  • Very low power consumption of  0.3W
  • Bias supply 0V to 2000V, software adjustable
  • Power over Ethernet, USB or wall adapter (depends on version)
  • Data acquisition done with 14bit ADC @10MS/S
  • Throughput >100.000cps
  • Fixed cable versions upon request
  • Ethernet, USB or RS485 computer interface versions
  • Integrated temperature sensor
  • Eloxed aluminum housing

Downloads for Cube527series

PDF Cube527 Spectrometer series Datasheet

PDF Cube527 Spectrometer series User Manual

PDF MCA527 List Mode Information

PDF  Cube527 Spectrometer series Quick Start Guide

PDF  Add-on Accessories Charge Sensitive Amplifier

PDF  Important USB cable information

Additional Software and Firmware Updates can be found in our download section >>
