Multichannel Analyzer (MCA)

Base527series

Device type: PMT based Digital Multi Channel Analyzer

Our Base527series offers fully equipped multi-channel analyzers with integrated bias supply and preamplifier for PMT- based detectors.
The Base527 modules are categorized in their respective computer interfaces. Base527 (µUSB Version) Base527E (Ethernet+µUSB) Base527R (RS485+µUSB).
Another variant is the Base527-SYNC. It was developed for special applications. With this module it is possible to start several components, such as multi-detectors, synchronously and to evaluate and assign different events.



Base527series

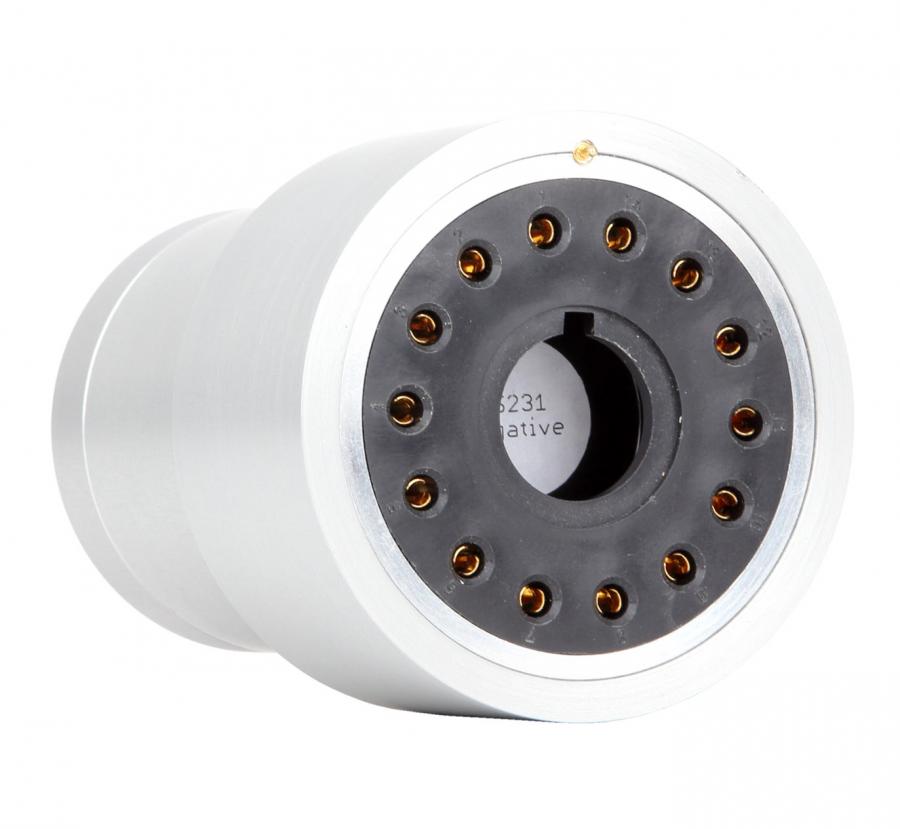

Base527 front view
Base527series

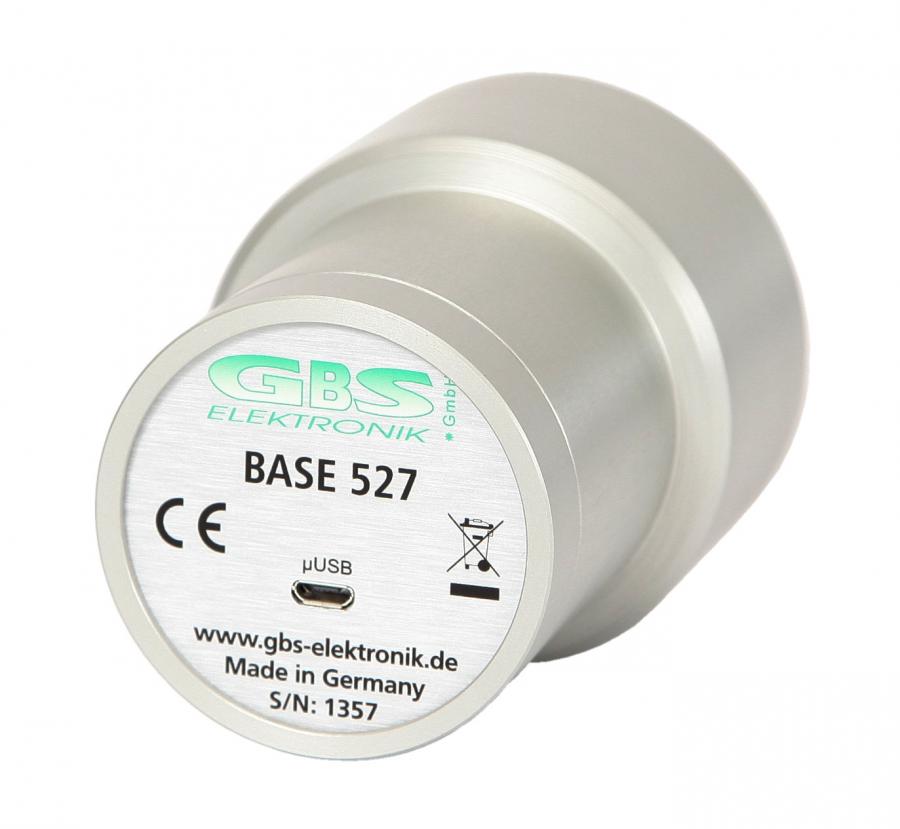

Base527E front view
Base527series

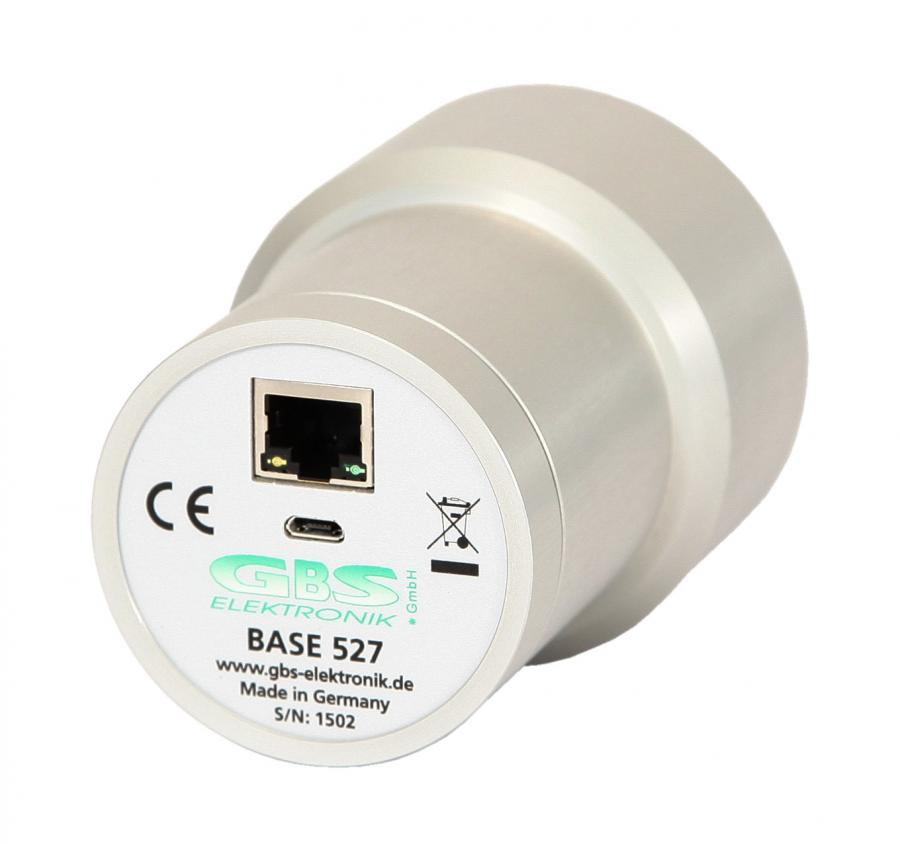

Base527E rear view
Base527series

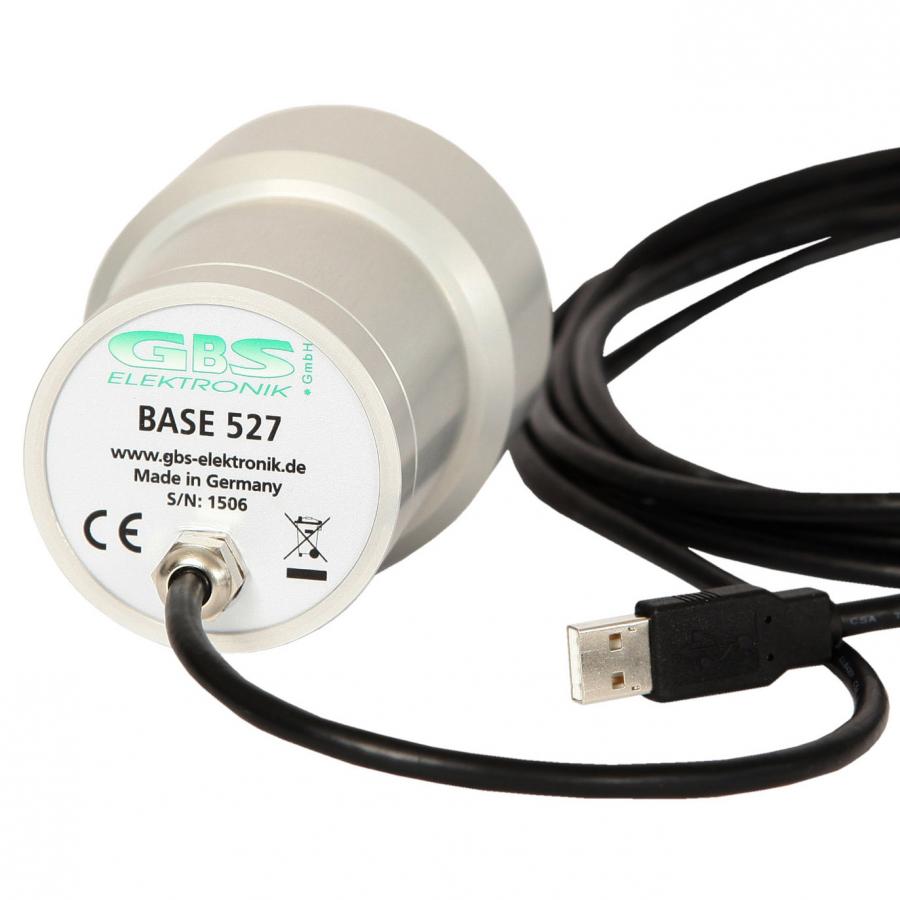

Base527 with fixed cable
Base527series

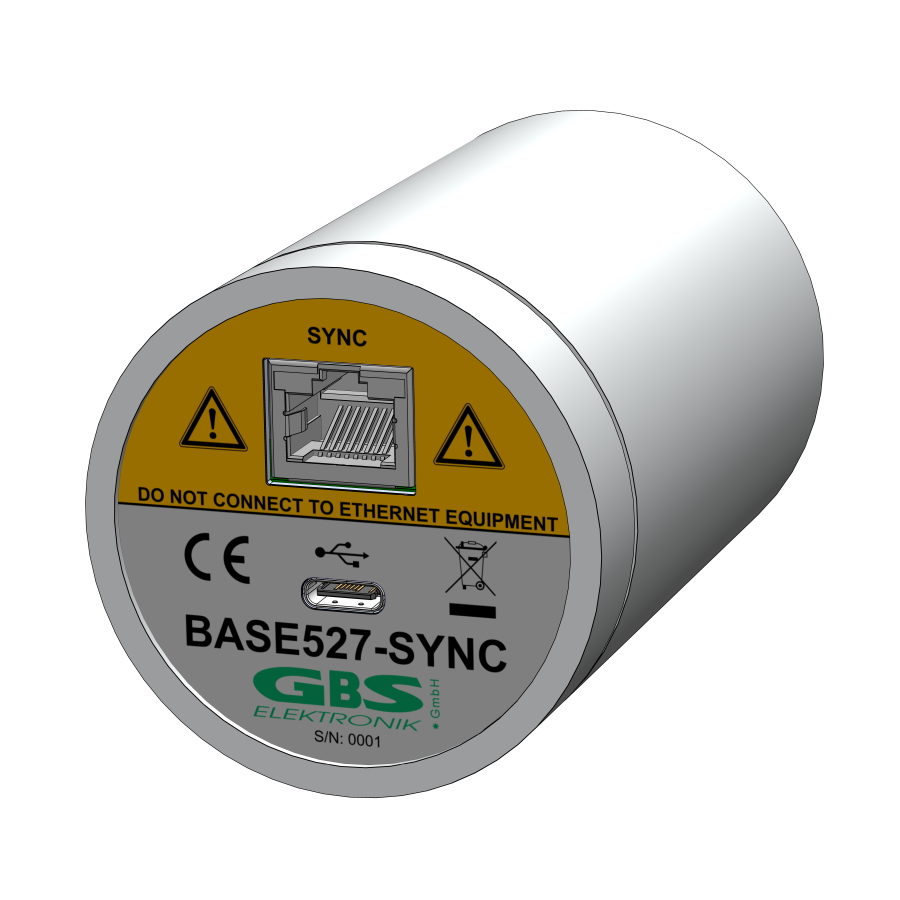

Base_SYNC

Physical characteristics

Dimension Ø72mm x 100mm

Weight of module ~400g

Operating temperature 0°C - 50°C

Relative humidity up to 90%, non condensing

Protection class IP00, EMC compliant

Key Features

  • Up to 4k channel resolution
  • Various PMT socket variants upon request
  • Very low power consumption of 0.4W
  • Data acquisition done with 14bit ADC @10MS/S
  • Bias supply 0V to 1000V, software controlled
  • Throughput >100.000 cps
  • Power over Ethernet, USB or wall adapter (depends on version)
  • Fixed cable versions upon request available
  • Ethernet, USB or RS485 computer interface versions
  • Integrated temperature sensor
  • Solid eloxed aluminum housing

Downloads for Base527series

PDF Base527series Datasheet

PDF Base527series User Manual

PDF MCA527 List Mode Information

PDF Base527-Series Quick Start Guide

PDF  Datasheet PMT socket variants

PDF  Important USB cable information

Additional Software and Firmware Updates can be found in our download section >>
