Device type: Digital Multi Channel Analysers

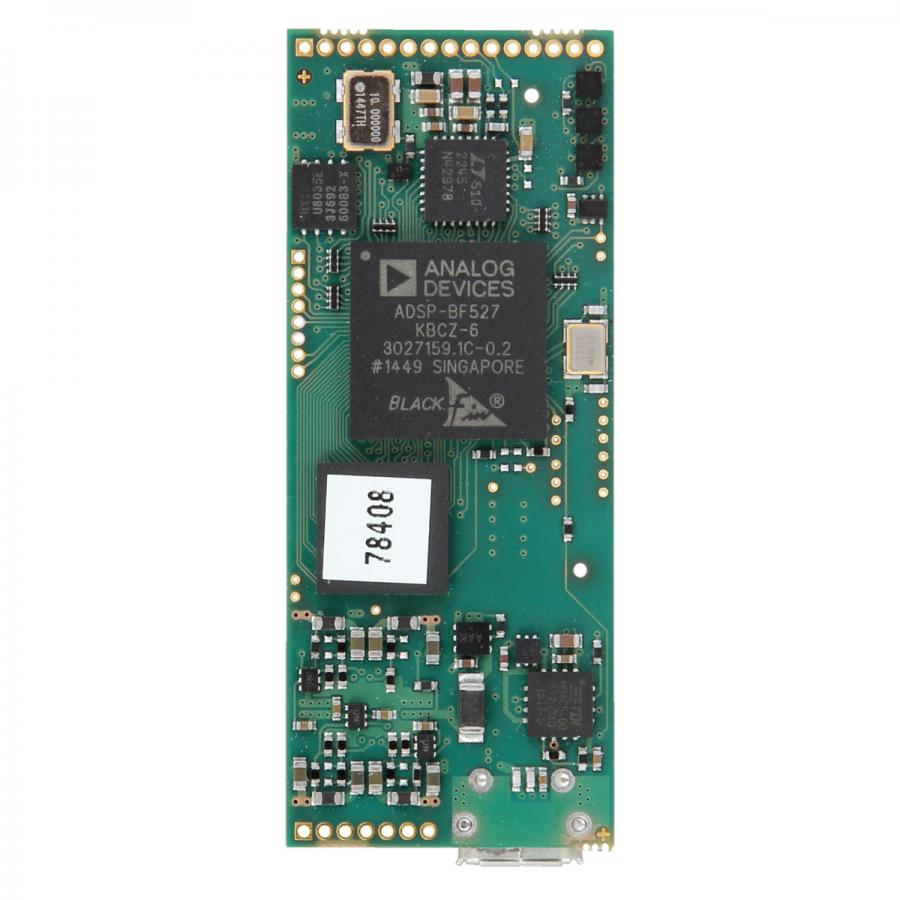

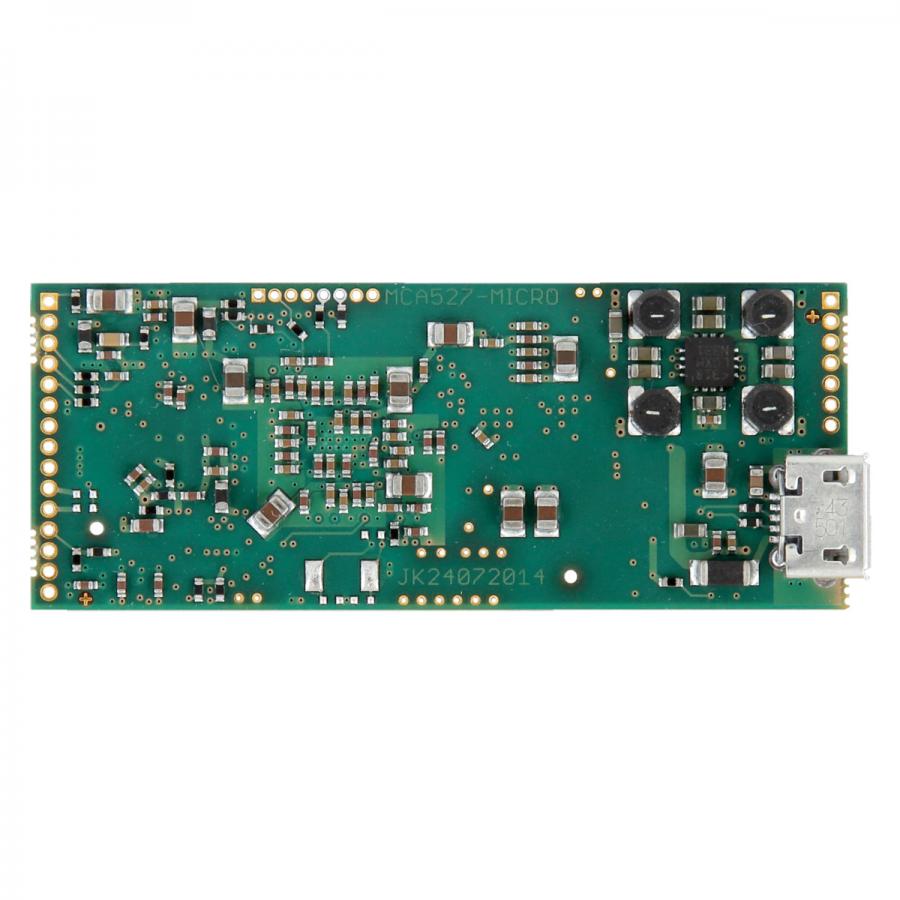

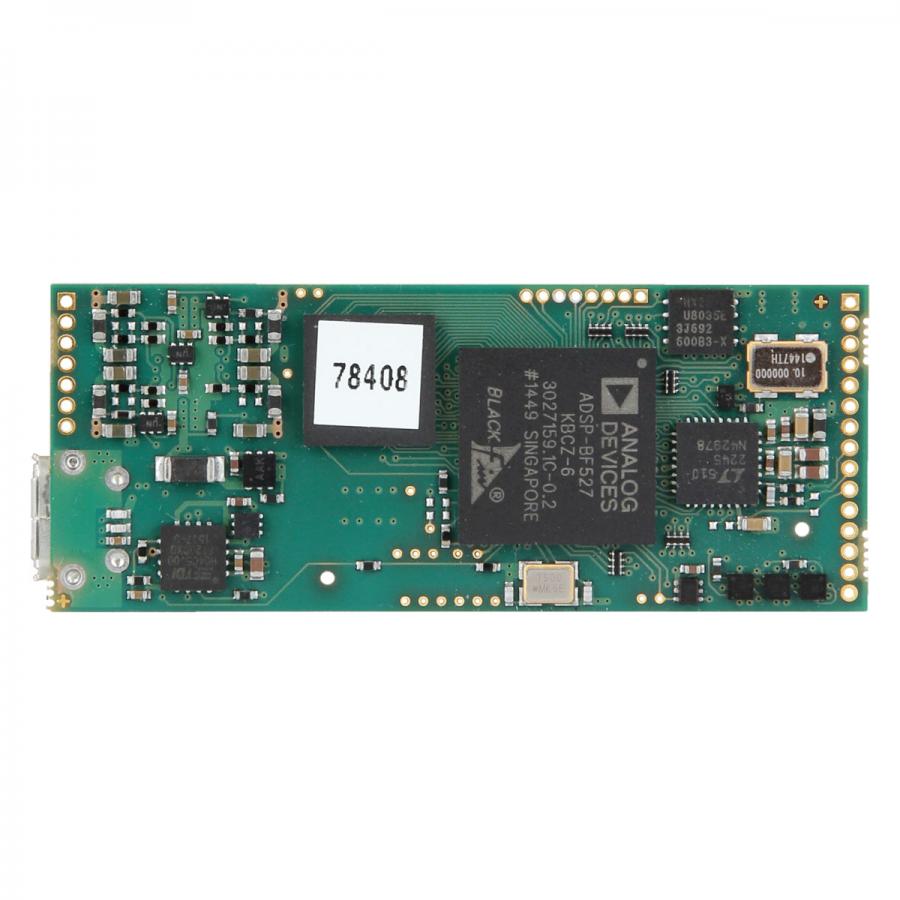

The MCA527 micro /micro+ is a cost-efficient, very low power consuming multichannel analyzer PCB in micro format. It is designed for the direct integration into a detector housing. Communication and power is provided via µUSB. The Micro+ version can operate with up to 16k channel resolution and offers some more operation modes.

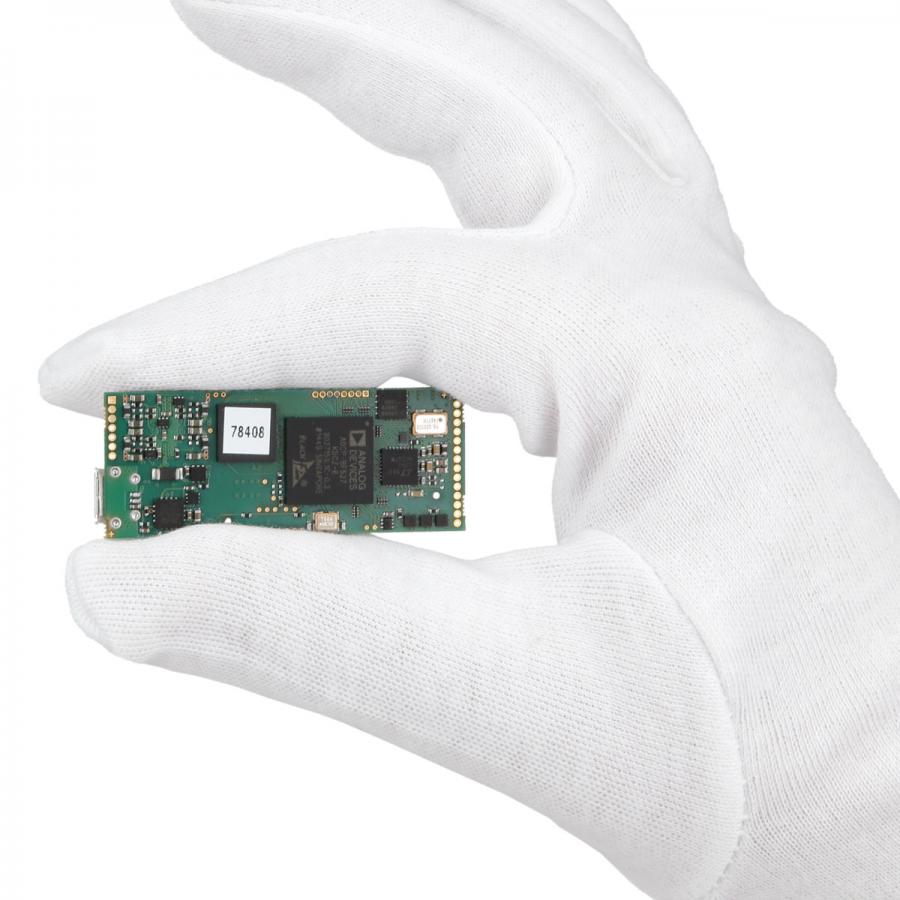

Dimension 50mm x 20mm x 5mm
Weight of the PCB 5g
Operating temperature 0°C - 50°C
Relative humidity up to 90 %, non condensing
Protection class IP00, EMC compliant
Datasheet MCA527 micro / micro+
Extended Datasheet MCA527 micro / micro+
Additional Software and Firmware Updates can be found in our download section >>
