Multichannel Analyzer (MCA)

MCA527OEM / OEM +

Device type: Digital Multi Channel Analysers

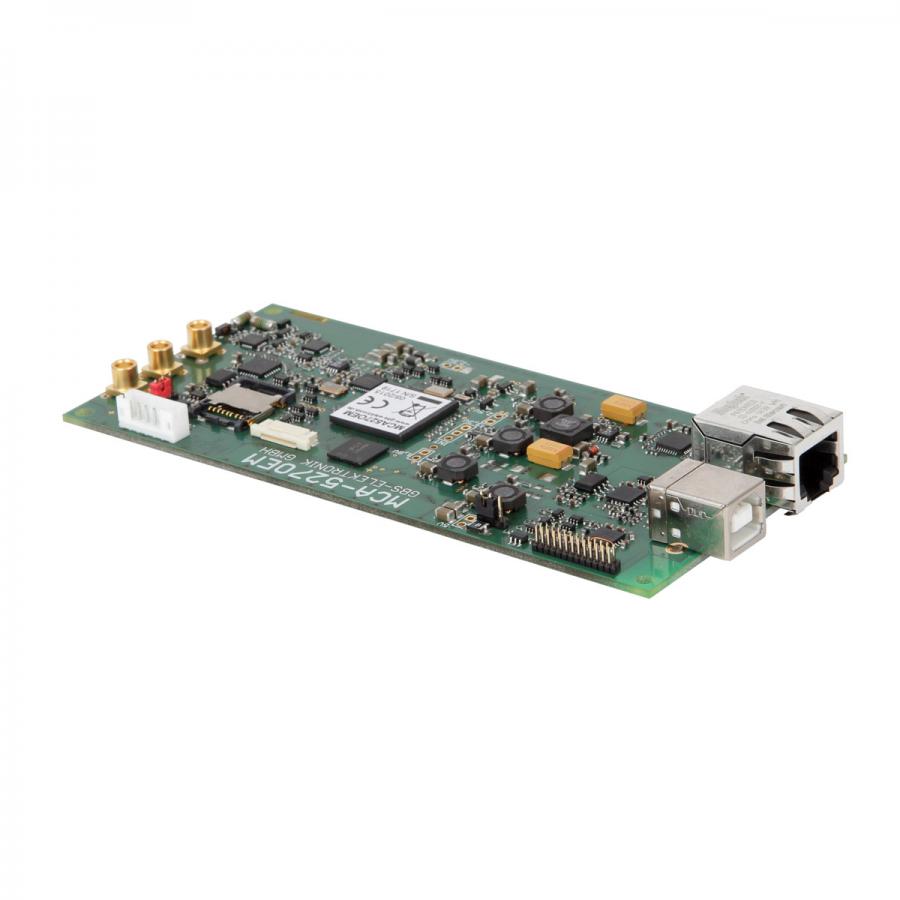

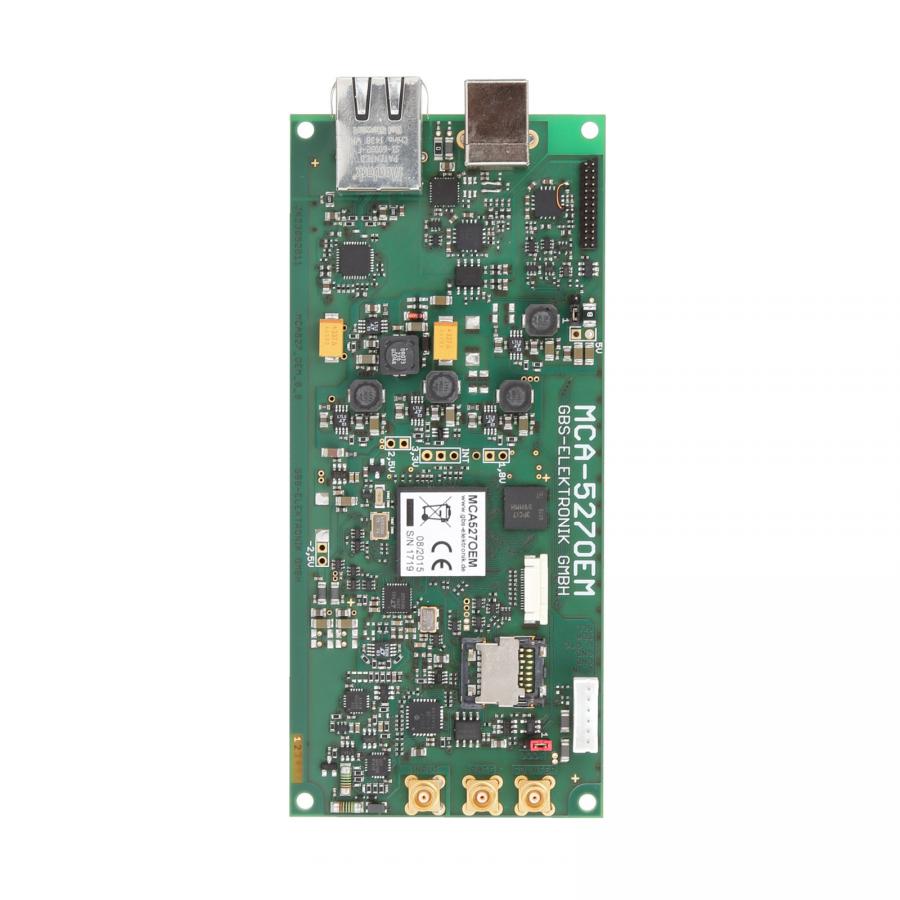

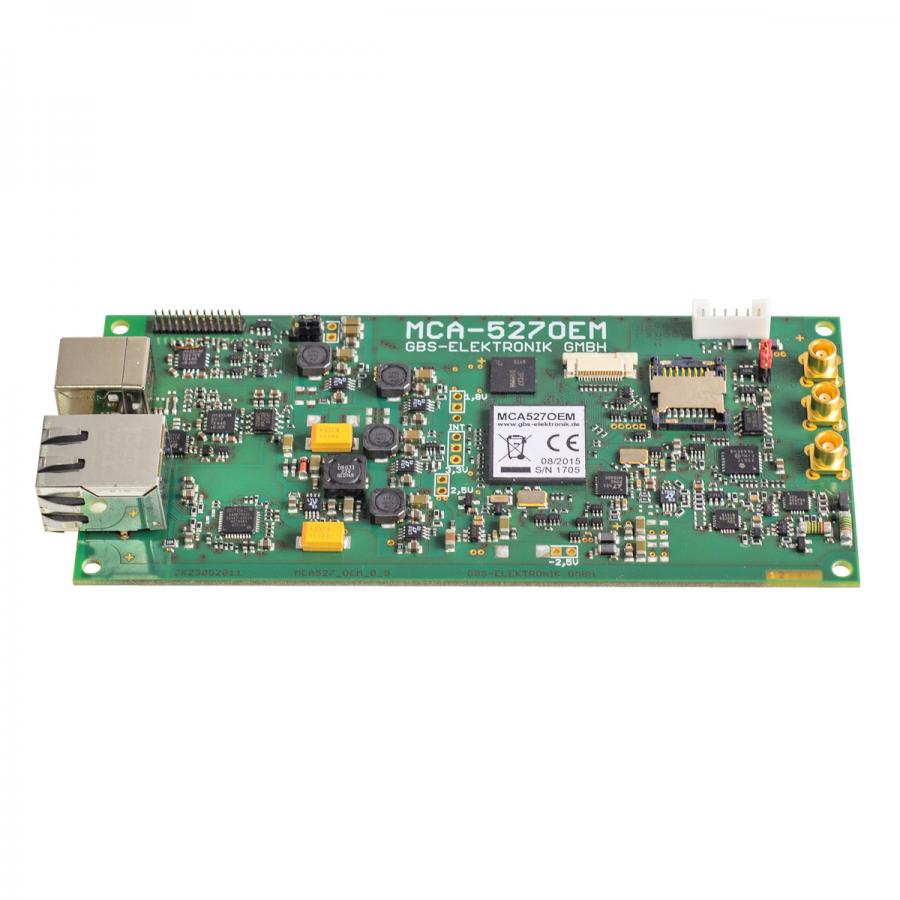

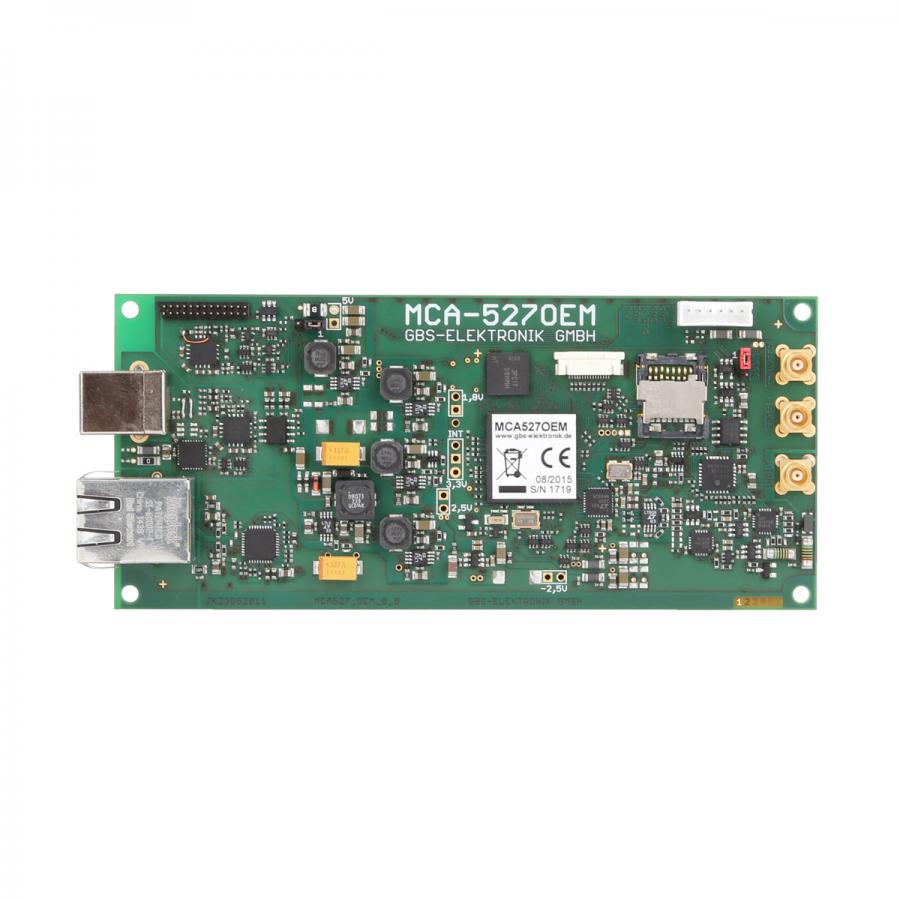

The MCA527 OEM is a cost-efficient and low power consuming multichannel analyzer PCB. It is intended for an easy integration in customer specific equipment and offers various interfaces. The MCA527 OEM+ version can operate with up to 16k channel resolution and offers some more operation modes.

MCA527OEM / OEM +
MCA527 OEM / OEM+
MCA527OEM / OEM +
MCA527 OEM / OEM+
MCA527OEM / OEM +
MCA527 OEM / OEM+
MCA527OEM / OEM +
MCA527 OEM / OEM+

Physical characteristics

Dimension 140mm × 60mm × 18mm

Weight of the PCB 48g

Operating temperature -20°C - 60°C

Relative humidity up to 90%, non condensing

Protection class IP00, EMC compliant

Key Features

  • Up to 2k / 16k (OEM+) channel  resolution
  • Channel splitting
  • low power consumption of  0.6W
  • Data acquisition done with 14bit ADC @10MS/S
  • Peak stabilization
  • Autonomous repeat mode
  • µSD-card slot on board
  • Ethernet- , USB, 2x RS232 interfaces on board
  • Equipped with all required sockets, no soldering necessary
  • Additional power outputs and interfaces on board
  • Cable for power supply included in delivery

Downloads for MCA527OEM / OEM +

PDF MCA527OEM / OEM + Datasheet

PDF  MCA527OEM / OEM + User Manual

PDF MCA527 List Mode Information

PDF Important USB cable information

Additional Software and Firmware Updates can be found in our download section >>
